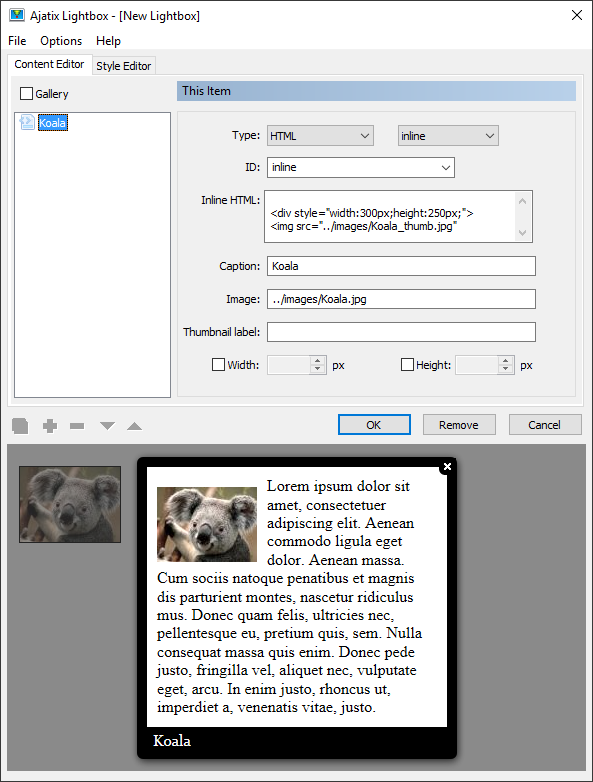

Editing inline HTML Content of the Lightbox
Specifies ID of an existing html container. Content of this container will be loaded into the Inline HTML text box of the add-in and will be displayed in the lightbox. The container must have style dysplay:none;. You can choose not to set the ID. In this case you can type inline HTML content in the Inline HTML text box.
Specifies the HTML content to be dysplayed in the lightbox. The best way to set HTML content is to add a 'div' element to the document, assign 'id' attribute and 'display:none;' style to it. Then you can create HTML content inside this div. In this case you can use Expression Web to edit HTML content. Then you will be able to select this ID in the add-in.
Specifies text that will appear in the lightbox below the HTML content. Caption will appear when Caption option is on. See Style Editor -> Caption to learn about setting up style of caption.
Specifies URL of the image. The thumbnail will be created based on it.
Specifies text that will appear below the thumbnail or instead of the thumbnail, if the image is not specified. If not filled in, the caption text will be used for the thumbnail label. This box is always available but the text will appear below the thumbnail when Thumbnail Labels option is on. See Style Editor -> Thumbnail labels to learn about setting up style of thumbnail labels.
Specifies the width of the HTML content.
Specifies the height of the HTML content.
If the width or the height is not specified, the lightbox will try to automatically determine the size.
Note on previewing the lightbox

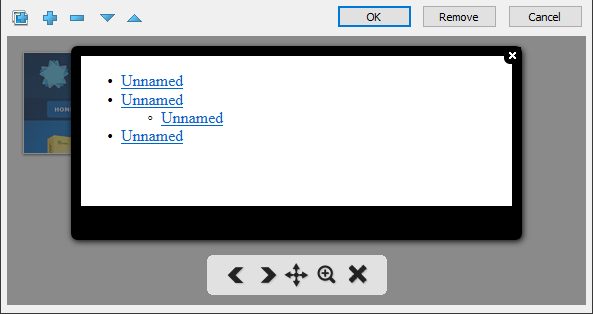

For example, the inline Ajatix menu will look like the following in the preview window:

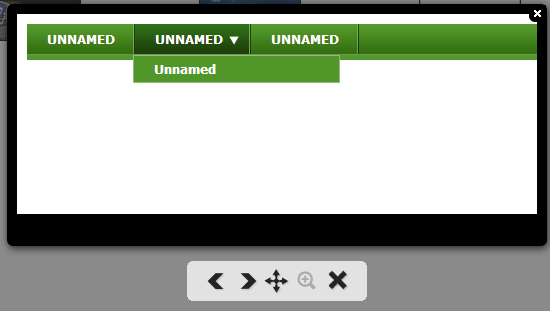

and like this in the lightbox window when the page is opened in the browser window:
